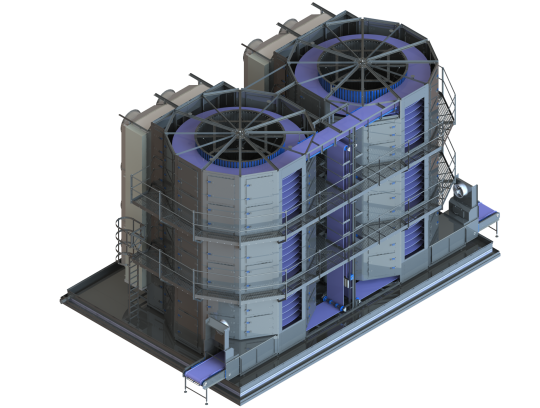

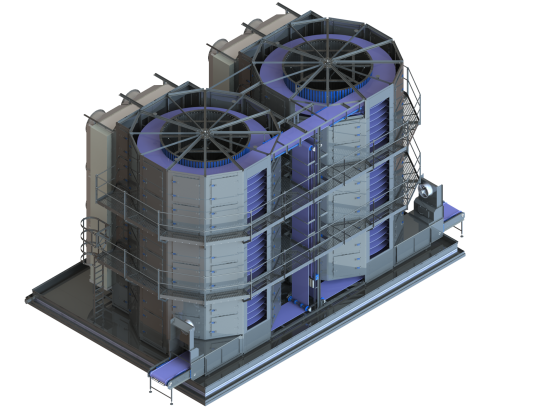

Twin Drum Lomax Spiral
The twin drum spiral provides ultra-flexibility on large volumes, typically between 3,000 kg/hr and 10,000 kg/hr of packed and unpacked product, ideal for medium to long retention times, low in and out or high in and out belt directions and multiple entry and exit positions. The twin drum (also called double drum) spiral orientation will also allow various footprint formats such as long rectangular where factory width is tight or a square design, both styles allowing maximum roof height to be utilised if needed.
Features
SPIRAL CONVEYOR BELT OPTIONS
A choice between stainless steel in many different options and plastic, all specifically designed to suit your different product applications.
CIP SYSTEMS
Various CIP options to suit your production environment and requirements
CONTROL PANEL
Flexible control panel design, touchscreen design or mimic configurations
OPTIONAL AIRFLOW
Horizontal airflow to give high efficiency heat transfer regardless of belt coverage. Optional vertical airflow to suit production requirements
MATERIALS OF CONSTRUCTION
Stainless steel product zone or galvanized steel option
EVAPORATORS
High efficiency evaporators with stainless steel tubes and aluminium fins or stainless tube and fins. Wide fin spacing to suit extended running options
BESPOKE DESIGN TO SUIT
YOUR REQUIREMENTS

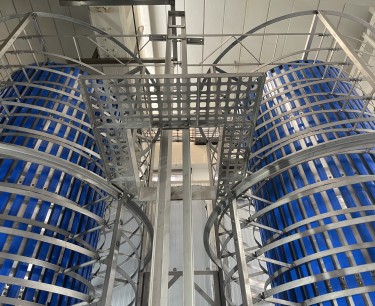

The Twin Drum Lomax Spiral, also known as a Double Drum, typically handles between 3,000 – 10,000 kg/hr of product with a medium to long freezing, chilling or cooling time through utilising various belt widths and multiple belt levels. The Twin Drum Spiral literally has double the freeze, chill and cool capacity and so can handle 100% more product compared to a single drum or can handle larger products requiring much longer freeze and chill times.
The Lomax Technical Sales and Project Team works closely with clients in the selection of the system to suit exact product and site space requirements and will advise if a smaller Compact Spiral, or Single Drum Spiral is more appropriate for the application or budget available.
Benefits
FLEXIBILITY
& INNOVATION
- Typically for 3,000 kg/hr to in excess of 10,000 kg/hr
- Large volumes of small products or for larger and longer freeze time products
- Multiple belt width, configuration and material options
- In low and out low or in high and out high configurations
- Branded major components for maximum reliability
- Highly efficient airflow with variable control options
- For freezing and cooling packed and unpacked product
- British bespoke design and project management
Latest Technology
FOCUSED DESIGn
- Spiral belt options include various widths, different infeed and exit orientations, all stainless steel, all plastic or hybrid cross of stainless steel and plastic materials according to application and preference
- Stainless steel structure hygienically designed to ensure quick cleaning and max up time
- Branded main components ensuring highest quality and reliable backup and spares
- Various levels of ongoing service support offered post warranty
CASE STUDIES
Go Big or Go Home
Lomax complete installation of two Spiral Freezer Hardening Tunnels for a leading ice cream producer in the USA.
Lomax Deliver Thailand Project
Spiral Freezer Relocation
Ultra-Efficient Compact Spiral Freezer
Factory Space Saved
SUPPORTING EACH OTHER
Lomax is an independent British Engineering Company that originated in 1997 and has supplied and serviced some of the UK and world’s largest brands, but has equally taken good care of small and medium sized private businesses too. Providing a consistently high level of after-sales care has proven to pay-back positively when customers return time and time again to invest in more Lomax equipment.
With a UK based technical team having gained vast industry-wide experience whilst previously working with supplier partners and competitors, Lomax can truly claim to have the skills and expertise to service all customers requiring high quality, reliable and robust systems and technical support.
