Single Drum Spiral
Typically for capacities in the region of 1,000 kg/hr to 6,000 kg/hr for the freezing and cooling of a wide variety of packed and unpacked products. A bespoke design ensures a perfect fit into any factory layout.
Features

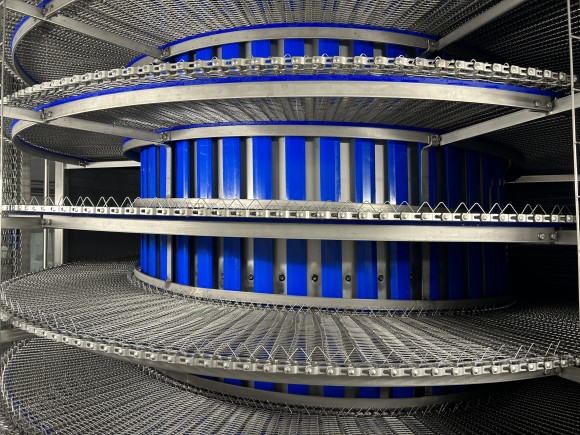

SPIRAL CONVEYOR BELT OPTIONS
A choice between stainless steel in many different options and plastic, all specifically designed to suit your different product applications.
CIP SYSTEMS
Various CIP options to suit your production environment and requirements
CONTROL PANEL
Flexible control panel design, touchscreen design or mimic configurations
OPTIONAL AIRFLOW
Horizontal airflow to give high efficiency heat transfer regardless of belt coverage. Optional vertical airflow to suit production requirements
MATERIALS OF CONSTRUCTION
Stainless steel product zone or galvanized steel option
BESPOKE DESIGN TO SUIT
YOUR REQUIREMENTS

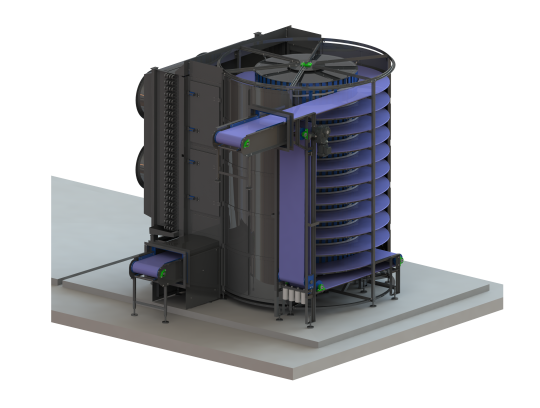

The Lomax Single Drum Spiral System typically freezes, chills and cools between 1,000 – 6,000 kg/hr of product with a medium dwell time through utilising various belt widths and multiple belt levels.
The Lomax Technical Sales and Project Team works closely with clients in the selection of the system to suit exact product and site space requirements and will advise if a smaller Compact Spiral or Twin Drum Spiral System is more appropriate for the application or budget available.
The Lomax Technical Sales and Project Team works closely with clients in the selection of the system to suit exact product and site space requirements and will advise if a larger system is more appropriate for the application or budget available.
Benefits
FLEXIBILITY
& INNOVATION
- For 1,000 kg/hr to in excess of 6,000 kg/hr
- Multiple belt width, configuration and material options
- Branded major components for maximum reliability
- Highly efficient airflow with variable control options

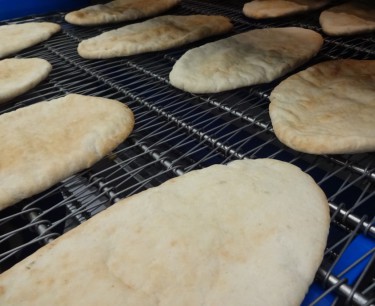

- For freezing and cooling packed and unpacked product
- British bespoke design and project management
- British manufacture
Latest Technology
FOCUSED
DESIGn
- Spiral belt options include various widths, different infeed and exit orientations, all stainless steel, all plastic or hybrid cross of stainless steel and plastic materials according to application and preference
- Stainless steel structure hygienically designed to ensure quick cleaning and max uptime
- Branded main components ensuring highest quality and reliable backup and spares
- Various levels of ongoing service support offered post warranty
